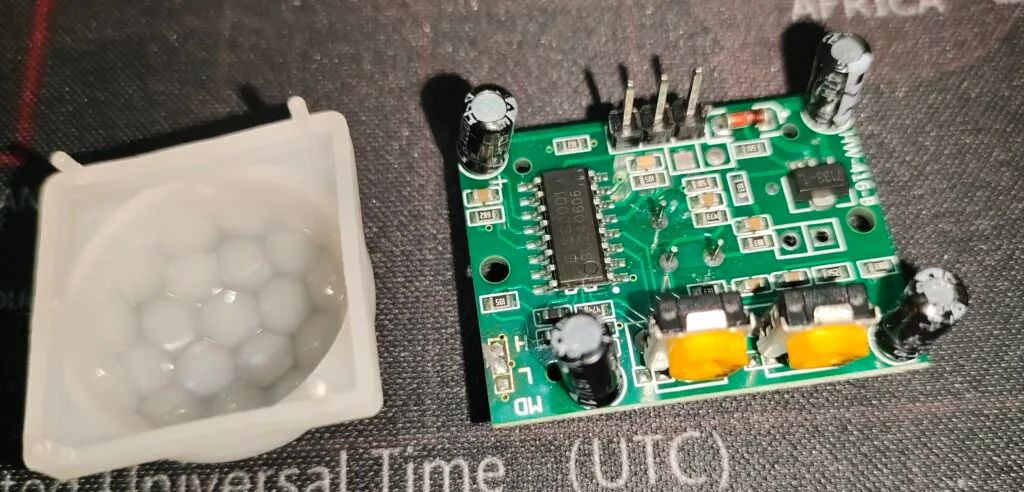

HW-416B Passive Infrared (PIR) Motion Sensor Module: A Complete Guide

Introduction

The HW-416B Passive Infrared (PIR) motion sensor module is a widely used electronic component designed to detect human movement. It is commonly found in security systems, automatic lighting, and various smart home applications. This sensor detects infrared (IR) radiation emitted by warm objects, such as the human body, and converts it into an electrical signal.

In this comprehensive guide, we will cover:

• HW-416B Specifications
• How it Works
• Features and Capabilities
• Comparison with Other Motion Sensors
• Better or Worse Alternatives
• Applications
• How to Use It with Microcontrollers like Arduino and Raspberry Pi
• Limitations and Considerations

HW-416B PIR Motion Sensor Specifications

The HW-416B PIR sensor module is designed for low-power, efficient motion detection. Below are its specifications:

How the HW-416B PIR Sensor Works

The HW-416B works based on the principle of detecting changes in infrared radiation within its field of view. Here’s a step-by-step breakdown of how it operates:

1. Infrared Detection

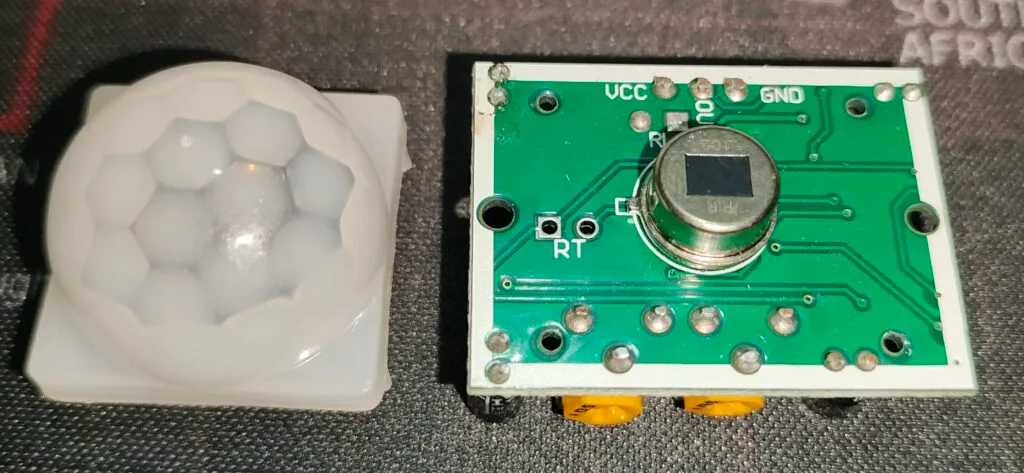

• The PIR sensor consists of two pyroelectric sensors that detect infrared radiation.
• When a warm object (like a human) moves in front of the sensor, it alters the IR radiation levels.

2. Signal Processing

• The sensor converts the infrared signal into an electrical signal.
• The built-in amplifier processes this signal and determines whether motion has been detected.

3. Output Signal Generation

• When motion is detected, the output pin goes HIGH (3.3V).
• If no motion is detected, the output pin remains LOW (0V).

4. Adjustable Delay and Sensitivity

• Users can adjust sensitivity and delay time via onboard potentiometers.
• The delay time can be set between 0.3 seconds to 300 seconds.

Features of HW-416B PIR Motion Sensor

1. Low Power Consumption

• Consumes less than 50µA, making it ideal for battery-operated devices.

2. Wide Detection Range

• Detects movement within 3 to 7 meters and has a 110° field of view.

3. Adjustable Delay Time

• Users can configure how long the sensor remains active after detecting motion (0.3s to 300s).

4. Repeatable and Non-repeatable Trigger Modes

• Repeatable Mode (H Mode): Keeps resetting the timer as long as motion is detected.
• Non-repeatable Mode (L Mode): Triggers once and does not reset until the output goes LOW.

5. Photosensitive Control (Optional)

• Can be configured to work only in dark environments, making it ideal for night security applications.

Comparison: HW-416B vs Other Motion Sensors

Better or Worse Alternatives

Better Alternatives

1. Microwave Radar Sensors – Better for outdoor security and longer-range motion detection.
2. PIR Sensors with Digital Processing (e.g., AM312) – More stable performance and lower false positives.

Worse Alternatives

1. Basic IR Sensors – Only detect presence, not motion.
2. Vibration Sensors – Detect movement only upon direct contact.

Applications of HW-416B PIR Sensor

1. Home Security Systems – Detects unauthorized movement and triggers alarms.
2. Automatic Lighting – Activates lights when a person enters a room.
3. Smart Home Automation – Works with IoT devices to control appliances.
4. Energy-saving Applications – Turns off devices when no movement is detected.
5. Pet Monitoring – Can be used to track pet movement.
6. Industrial Motion Detection – Used in warehouses and manufacturing plants.

How to Use HW-416B with Arduino

Wiring Diagram

Arduino Code Example

int pirPin = 7;
int ledPin = 13;

void setup() {
  pinMode(pirPin, INPUT);
  pinMode(ledPin, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  int motionDetected = digitalRead(pirPin);
  if (motionDetected) {
    Serial.println("Motion Detected!");
    digitalWrite(ledPin, HIGH);
  } else {
    digitalWrite(ledPin, LOW);
  }
  delay(500);
}

Limitations and Considerations

• False Triggers – Can be affected by temperature changes, direct sunlight, and other infrared sources.
• Detection Angle is Fixed – May require multiple sensors for larger areas.
• Limited Outdoor Usability – Rain, fog, or extreme temperatures can reduce efficiency.

Conclusion

The HW-416B PIR motion sensor is an excellent choice for motion detection in home automation, security systems, and energy-saving applications. With its low power consumption, adjustable settings, and reliable performance, it is a versatile component for both beginners and advanced users.

While it has some limitations, such as sensitivity to environmental factors, its affordability and ease of use make it a top choice for motion detection projects.

Would you like to see more project ideas using this sensor? Let us know in the comments!
